XTC - Overview

Achieving peak performance on AI operators is hard

  • Matrix multiplication, convolution, activations...
  • Balance computation and data movement
  • Keep hardware units continuously utilized
  • Minimize stalls and idle time

The Automation vs. Manual Tuning Dilemma

Approach Pros Cons
Compiler heuristics High productivity Often fail to reach peak performance
Hand-tuned kernels Highest performance Poor portability, high dev effort

Goal: Expose optimization decisions through controllable and portable interfaces

Scheduling Languages: The Promise

Allow experts to script optimization transformations

  • Tiling, fusion, vectorization, parallelization...
  • Reduce reliance on opaque compiler heuristics
  • Can be driven by humans or autotuners

Examples: TVM/TE, Halide, MLIR Transform dialect

The Problem: Fragmentation

Each scheduling language is locked to its ecosystem

  • TVM Tensor Expressions → TVM only
  • Halide → Halide framework only
  • MLIR Transform dialect → MLIR ecosystem only

What's Missing?

There is currently no unified, user-facing API flexible enough to decouple scheduling specification from code generation.

  • TVM & MLIR hard to compare on equal footing
  • Difficult share scheduling strategies across backends
  • No common measurement infrastructure

XTC - Proposal

A research platform that decouples:

  1. Scheduling -- Common API across compilers
  2. Code generation -- Multiple backends (TVM, MLIR, ...)
  3. Measurement -- Cross-platform hardware counters

bg right:50% 70%

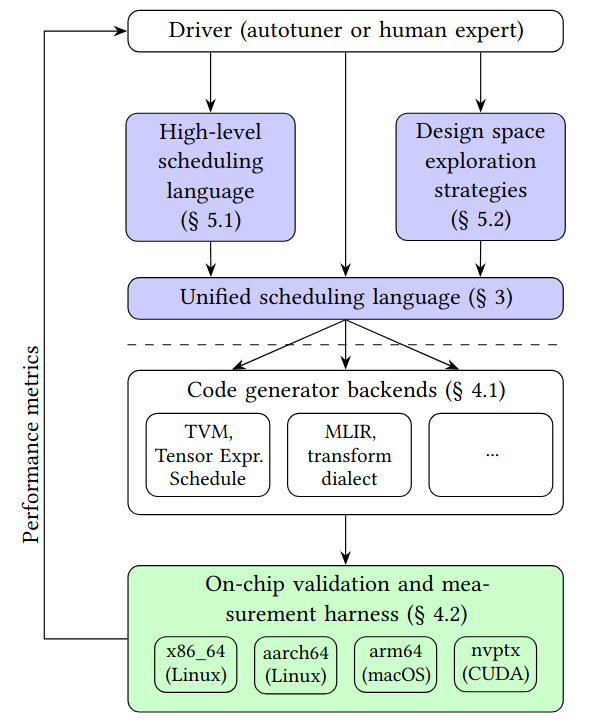

XTC Architecture

Entry points (blue): - High-level scheduling language - Unified scheduling API - Design space exploration

Backends: - TVM, MLIR, extensible...

Measurement (green): - x86, ARM (experimental: Apple Silicon, NVIDIA GPUs)

A Taste of XTC

sch.dims = ['I','J','K']
sch.split(root="mm0", dim="J", segments={"J[0]":0,"J[1]":256})
sch.strip_mine(root="J[0]", dim="K", tiles={"K1": 4})
sch.strip_mine(root="J[0]", dim="J", tiles={"J1": 16})
sch.unroll(root="J[0]", unrolls={"J1": 16, "K1": 4})
sch.vectorize(root="J[0]", axes=["J1"])

Same schedule → TVM or MLIR backend

Scheduling Primitives

Primitive Purpose
strip_mine Partition iteration domain into blocks
interchange Reorder loops for locality/vectorization
split Divide loop into contiguous regions
unroll Expose instruction-level parallelism
vectorize Map to SIMD resources
parallelize Distribute across threads/cores
pack_at/buffer_at Improve spatial locality
fuse_producer/consumer_at Combine producer/consumer operations
distribute Define and distribute memories among processors

Higher-Level: Declarative Scheduling

sch.descript({
    'I': [],
    'J[0:256]': {
        'K': [],
        'K#4': ['unroll'],
        'J#16': ['vectorize']
    },
    'J[256:258]': {
        'K': []
    }
})

Describe the target loop nest rather than the transformation sequence

Why XTC for Research?

  1. Fair comparison of scheduling strategies across backends
  2. Reproducible measurements with HW counter access
  3. Identify backend limitations (e.g., MLIR vectorization issues)
  4. Evaluate performance models against real hardware
  5. Rapid prototyping of new scheduling languages

Key Results

  • Matches hand-tuned C with vector intrinsics
  • High correlation between TVM and MLIR backends
  • Identified mlir-opt vectorization limitation on generic convolutions
  • Integration into an existing AI framework (15-30× speedup over unoptimized generic C++)

References

Paper: https://arxiv.org/abs/2512.16512

Sources: https://github.com/xtc-tools/xtc
